SM403 Binocular Stereo Microscope 20X-80X Magnification Forward-Mounted For Circuit Board Welding & Watch Repair and Seed Quality Testing

غير متوفر بالمخزن
SKU
SVB-F9392A
KD 59.00
Brands:
Only 0 Qty left in stock

SM403 Forward-Mounted Binocular Stereo Microscope has vertical arm bracket; which reduces the pressure on the cervical spine, 3 magnification settings. LED dual light source design and the brightness is adjustable. It is an ideal choice for circuit board welding, watch repair and seed quality testing.

Features

1. Vertical arm bracket
2. 20X; 40X; and 80X magnification
3. LED dual light source
4. Dual power system & dual stage
5. Aluminum alloy body
6. 45°tilt and 360 rotation
7. WF10X,WF20X eyepiece
8. Rack and pinion stand
9. Wide range of applications

أضف لقائمة الرغبات

SM403 Forward-Mounted Binocular Stereo Microscope

SM403 Forward-Mounted Binocular Stereo Microscope adopts a more stable one-piece design, give you a more comfortable experience.

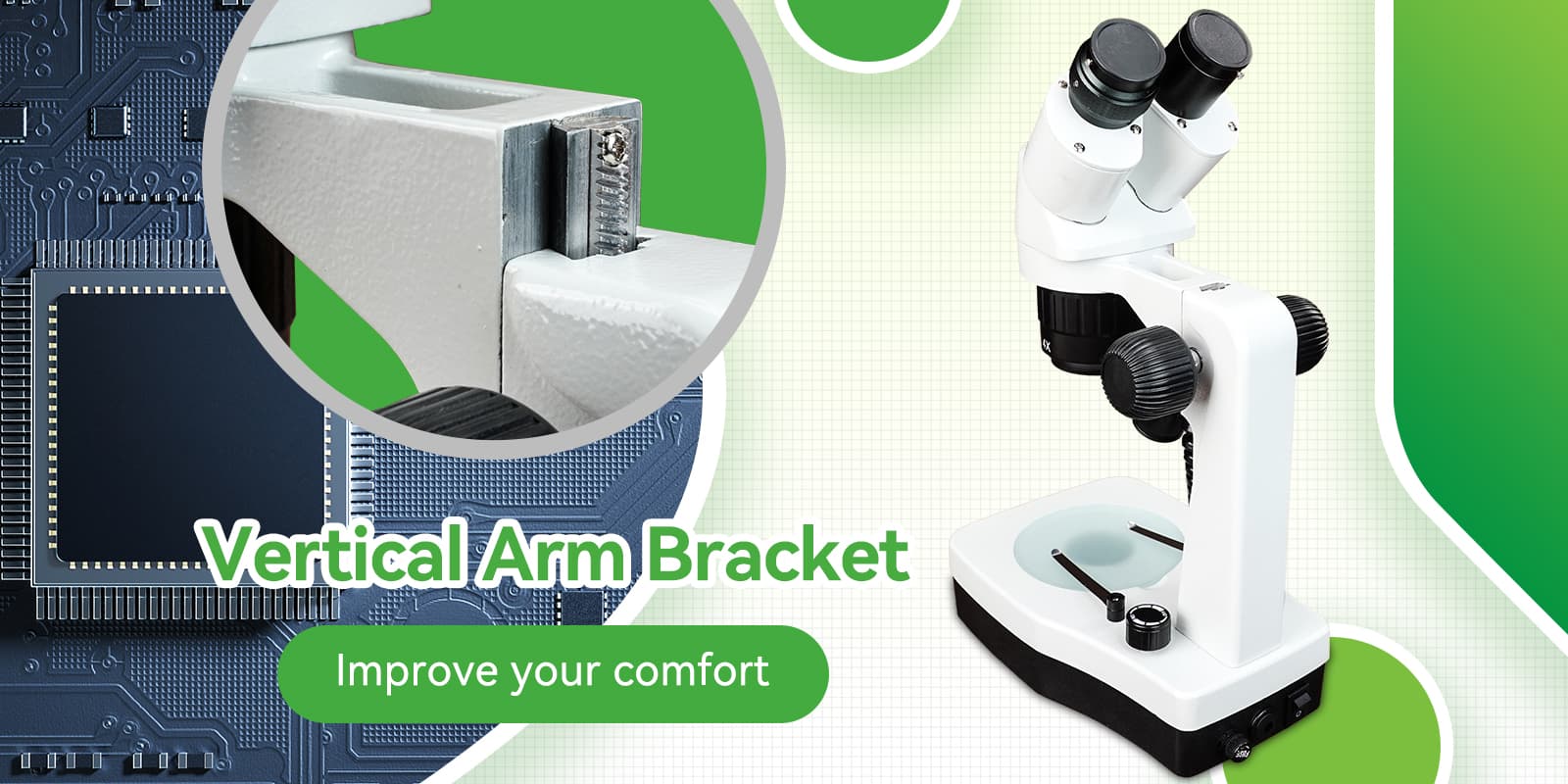

Vertical Arm Bracket

The vertical arm bracket makes the adjustment more convenient, eliminates the need for users to bend over too much and improve machine stability and accuracy.

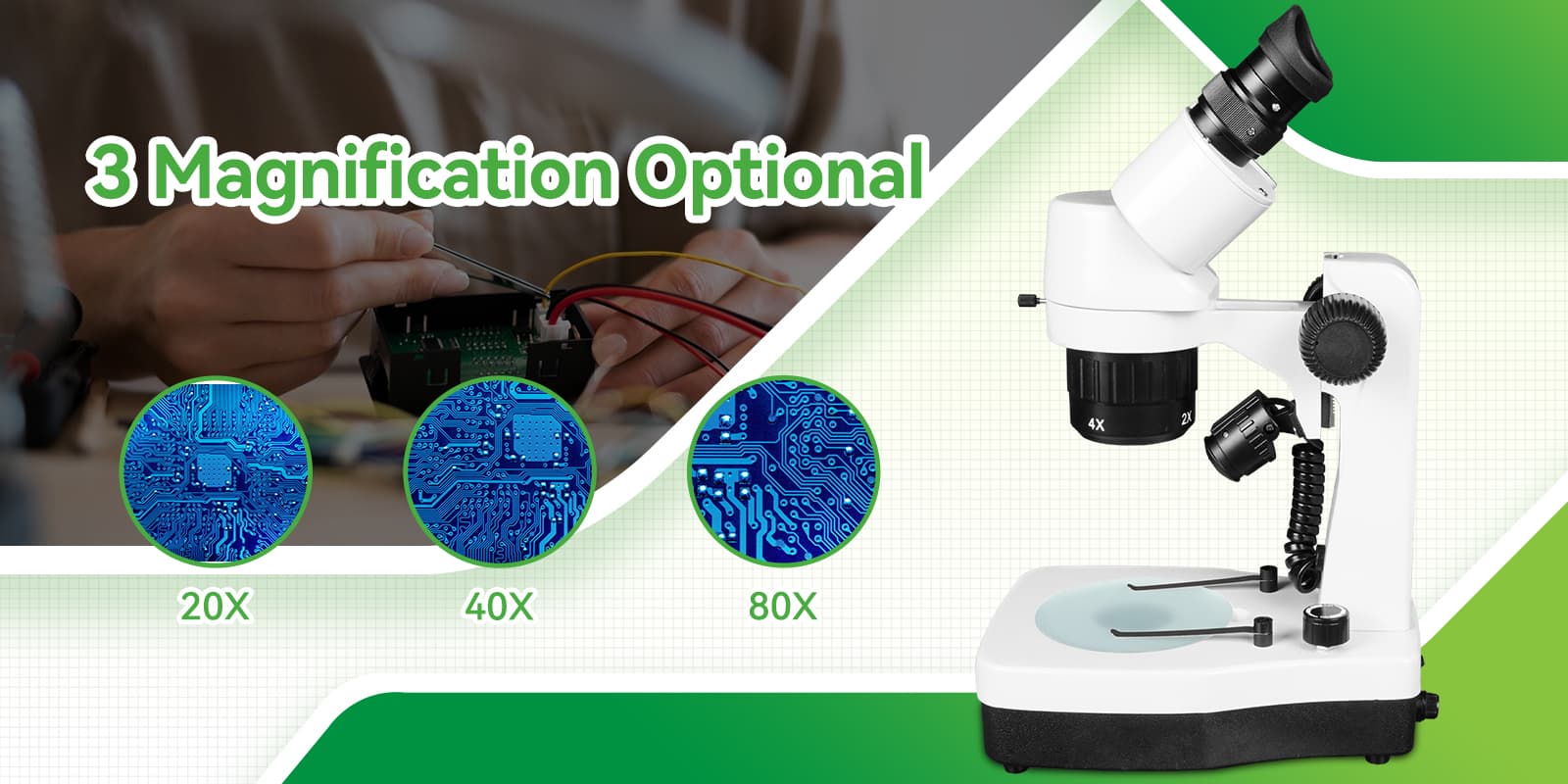

3 Magnification Optional

20X; 40X; and 80X magnification provides you with diverse observation options; allowing you to conduct precise observation as needed.


LED Dual Light Source

The binocular stereo microscope adopts LED dual light source design. Compared with lights made of other materials, the LED light brightness is more stable and the light is stronger.

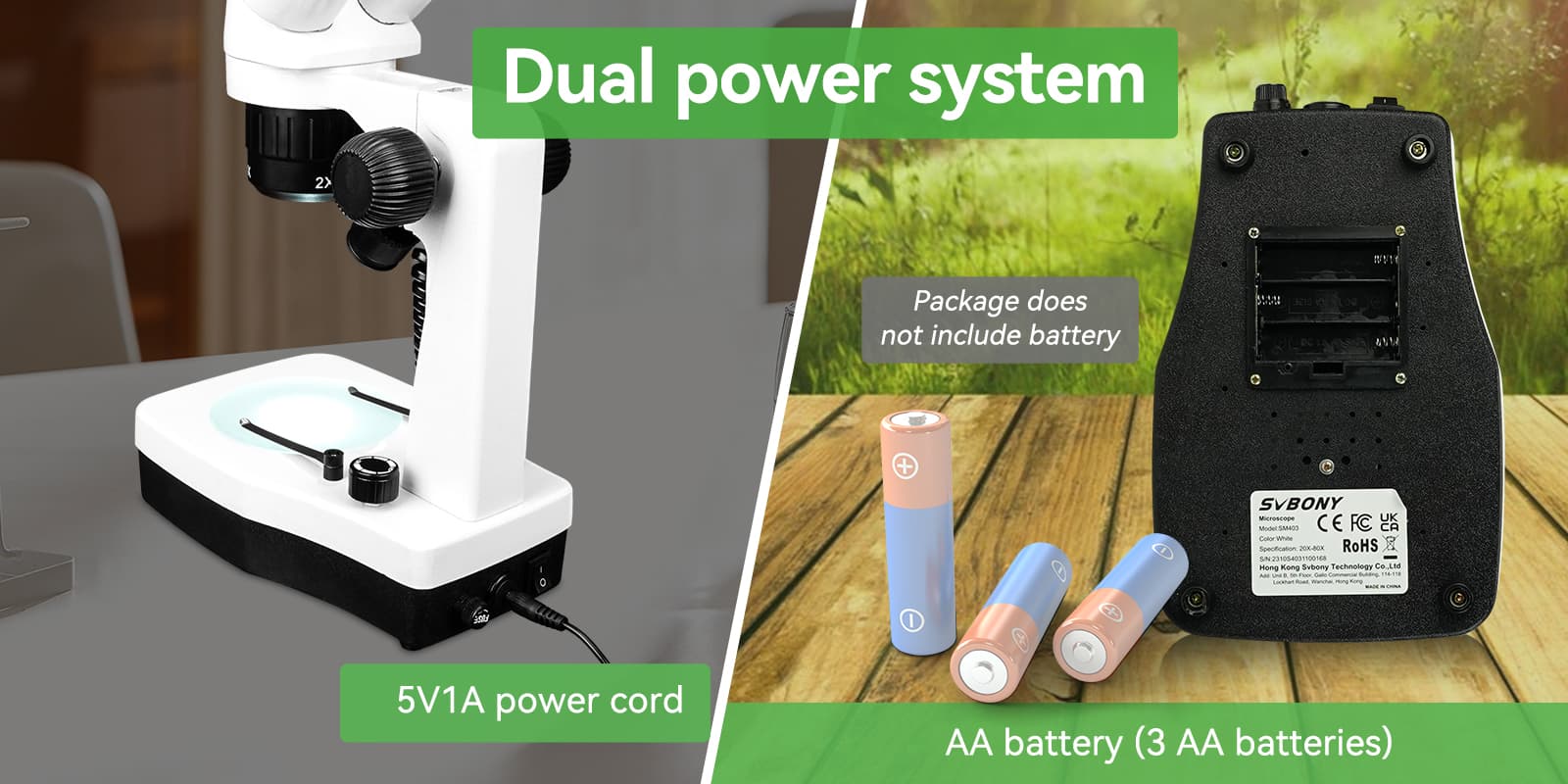

Dual Power System

The industrial stereo microscope has two power supply modes: AA battery power supply and 5V1A power supply, so that the use of the microscope is not restricted by the power cord, making it more convenient for outdoor use.


Two 95mm Stages

When more light is needed to observe the sample, frosted stage can be used. Use the reversible black and white stage when comparing samples.

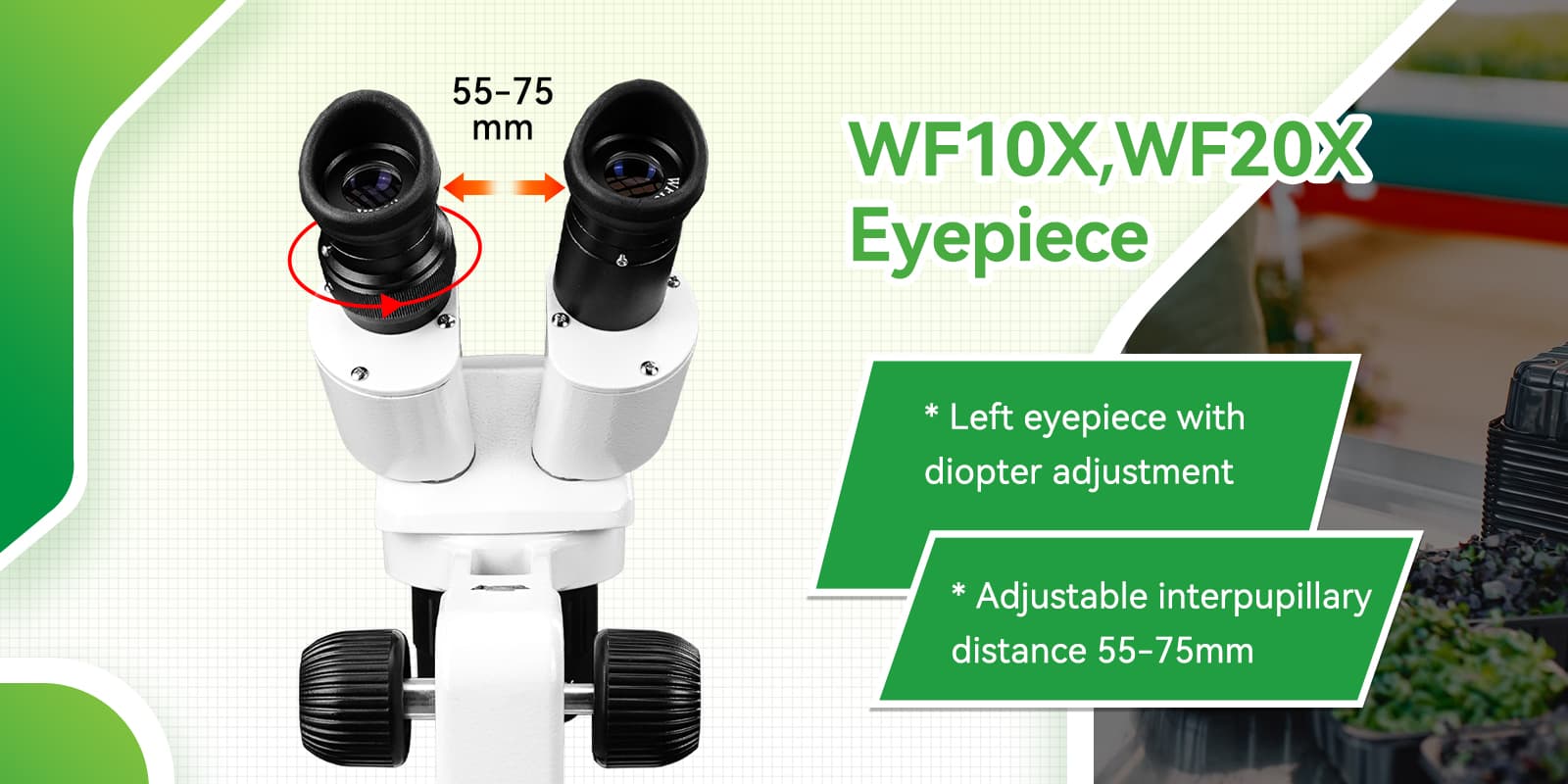

WF10X & WF20X Eyepieces

The WF10X and WF20X eyepieces combine with the 2X and 4X objectives to provide 20X,40X and 80X magnification.


Left Eyepiece With Diopter Adjustment

The diopter of the left eyepiece is adjustable, and people with myopia can use it without glasses.Eyecups ensure comfortable observation.

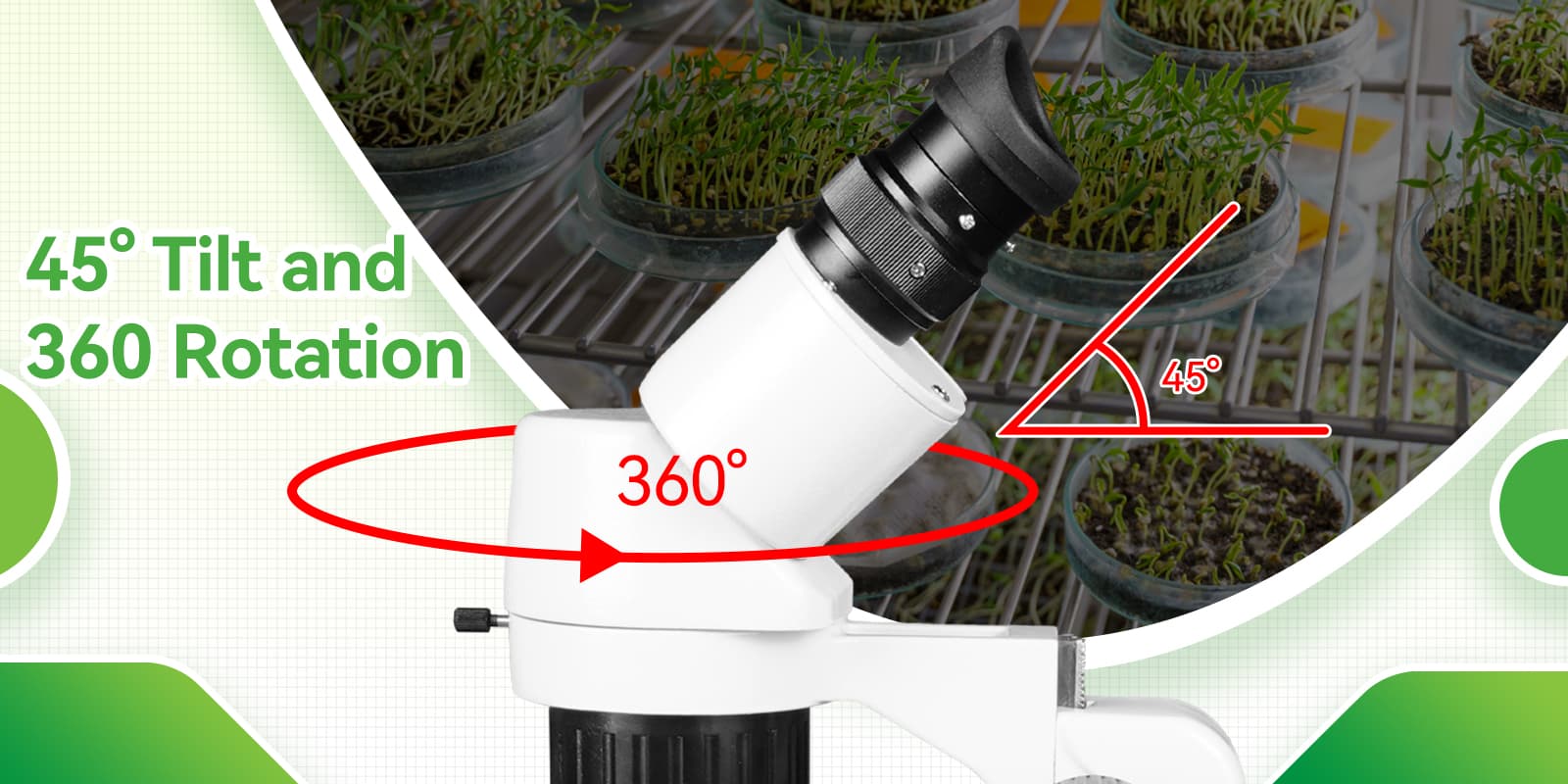

45° Tilt & 360° Rotation

The eyepiece of the SM403 stereo microscope is tilted at 45°, which is ergonomic and can relieve neck fatigue. The eyepiece can be rotated 360° to facilitate sharing experimental results with others.


Aluminum Alloy Body

The aluminum alloy body ensures the stability of the machine and is not prone to shaking. And the material is sturdy and durable.You can also use it in harsh environment.


Wide Applications

SM403 forward-mounted binocular stereo microscope is ideal for small electronic and circuit board repair, engraving, small sample dissection, gemmology, and hobbyists who require detailed observation of solid objects such as coin or stamp collections.

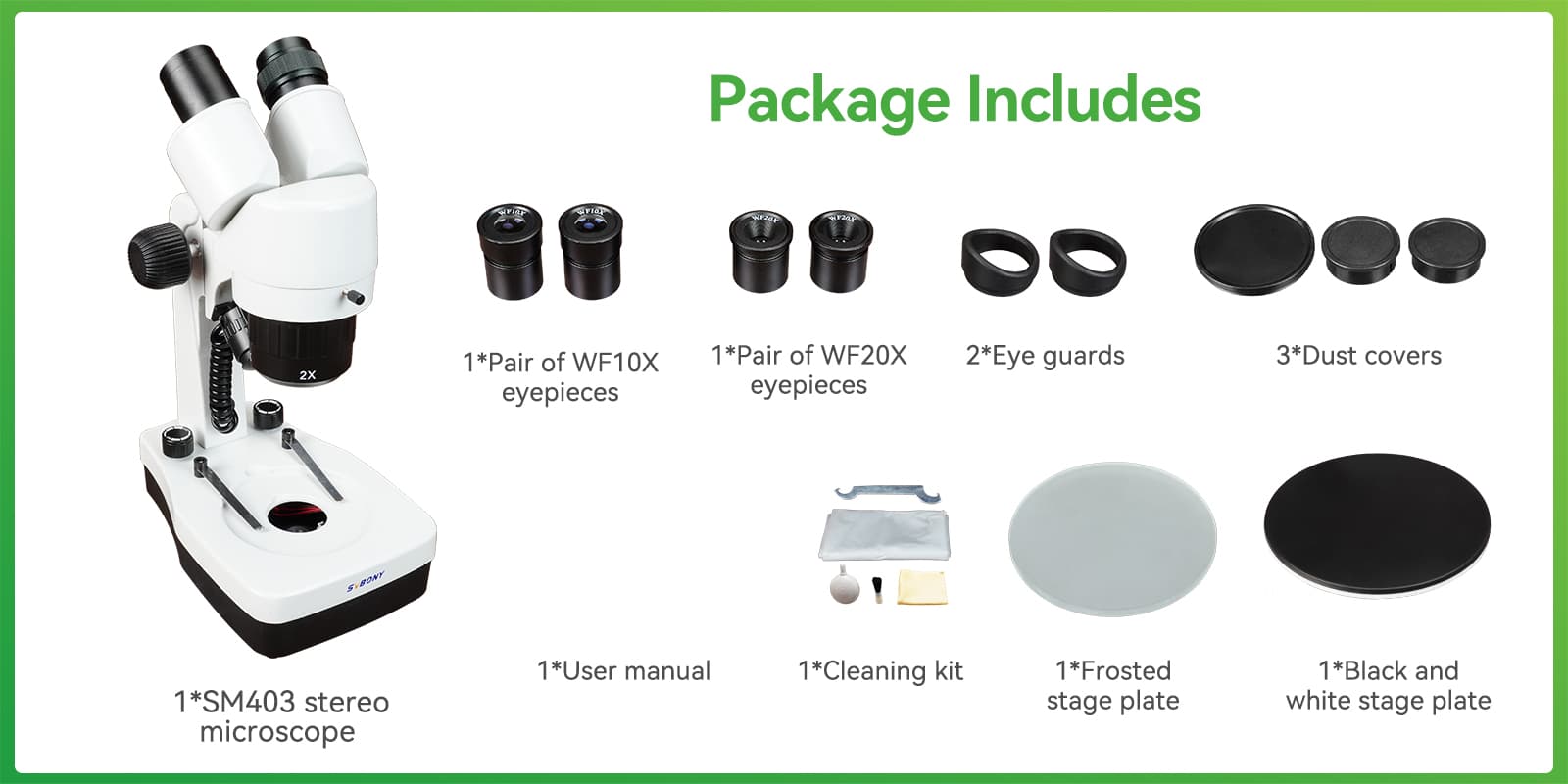

Package Includes


Specifications

Brand Svbony
Light Source Type LED
Color White,Blue
Real Angle of View 45 Degrees
Magnification Maximum 80x
Objective Lens Description Achromatic
Power Source 5V1A or Battery Powered
Interpupillary distance 55-75mm
Item Weight 2500g
