Imagine having two telescopes in one — a long focal length instrument for lunar and planetary observing, and a short focal length scope for deep-sky observing and astrophotography. With the Celestron Reducer/Corrector Lens, that is precisely what you achieve.
Achieve Shorter Focal Length
Explicitly designed for Celestron Schmidt-Cassegrain telescopes, this unique lens reduces your telescope’s focal length and f/ ratio by 37%, turning your long focal length telescope into a fast, short focal length instrument. An f/10 focal ratio is converted to f/6.3, while an f/11 focal ratio is converted to f/7. For visual observing, this offers lower magnification with the same eyepiece and a wider field of view. For photography, it delivers a wider field and significantly shorter exposure times.
How to Use
The Reducer/Corrector is easy to install by threading the unit directly onto the rear cell of your Schmidt-Cassegrain telescope (or onto the reducer plate of the C11 and C14 models). Once installed, you can attach additional accessories such as T-Adapters, a 1.25" Visual Back, a Star Diagonal, or an Off-Axis Guider.
This fully multi-coated lens ensures maximum light transmission with near full-field illumination. It can also be used for terrestrial digiscoping, where the faster f/ ratio allows shooting in low-light situations while maintaining proper exposure. Always replace the plastic protective caps when not in use to keep dust away from the optical glass.

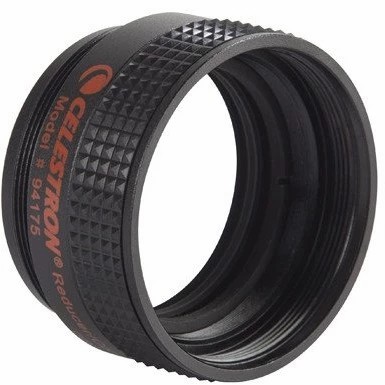

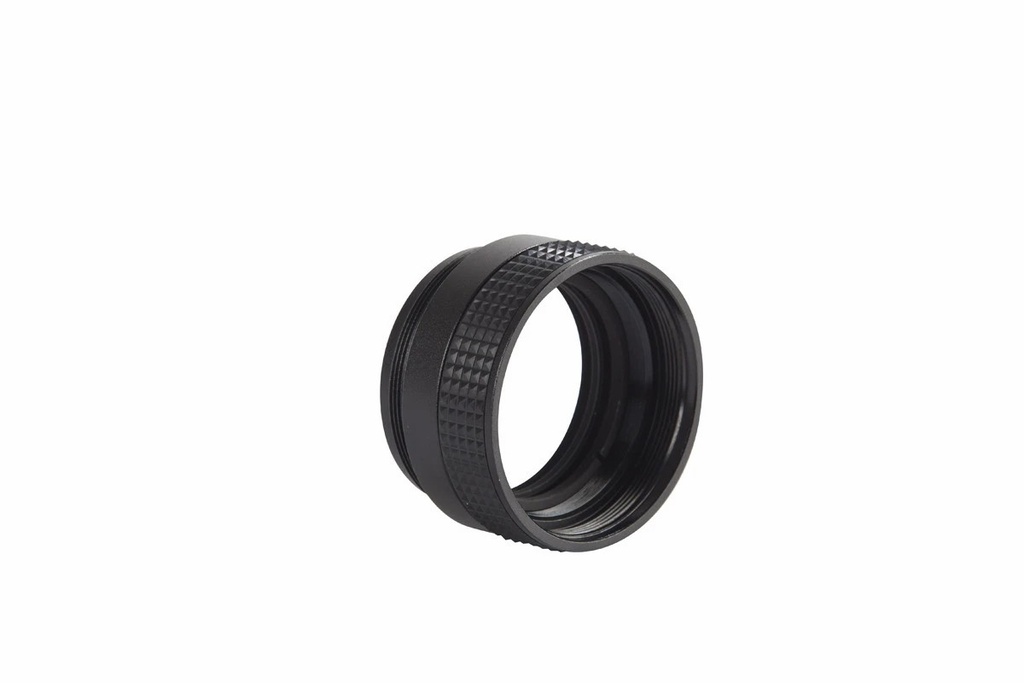

Body & Build Quality
The lens is housed in precision-machined aluminum with a black anodized finish. Internal surfaces are fully blackened and glare-threaded to maximize image contrast. The outer body features a knurled surface, offering a solid grip for easy threading and unthreading.
Due to its optical design, the Reducer/Corrector lens also flattens the field by reducing field curvature inherently present in Schmidt-Cassegrain telescopes, providing flatter views from edge-to-edge both visually and photographically.
Reducer/Corrector Compatibility List
| Compatible Optics | |
|---|---|
| C5 (Found in StarSense Explorer, Astro Fi WiFi, NexStar SE, and Advanced VX) | C6 Optical Tube |
| C8 Optical Tube | C9.25 Optical Tube |
| C11 Optical Tube | C14 Optical Tube |
| Incompatible Optics | |
|---|---|
| EdgeHD Optical Tubes | Maksutov-Cassegrain Optical Tubes |
| Refractor Optical Tubes | Newtonian Reflector Optical Tubes |
Technical Specifications
| Lens Coating: | Fully Multi-Coated |
|---|---|
| Housing Material: | Black Anodized Machined Aluminum |
| Optical Compatibility: | Celestron Schmidt-Cassegrain telescopes (C5, C6, C8, C9.25, C11, C14) | Not compatible with EdgeHD |
| Dimensions: | 56 mm (2.2 in) diameter, 34 mm (1.34 in) length |
| Weight: | 121.90 g (4.3 oz) |
Manuals & Documentation
| Document Title | Download Link |
|---|---|
| Reducer/Corrector Instruction Manual | Download PDF |
| Brand | Celestron |
