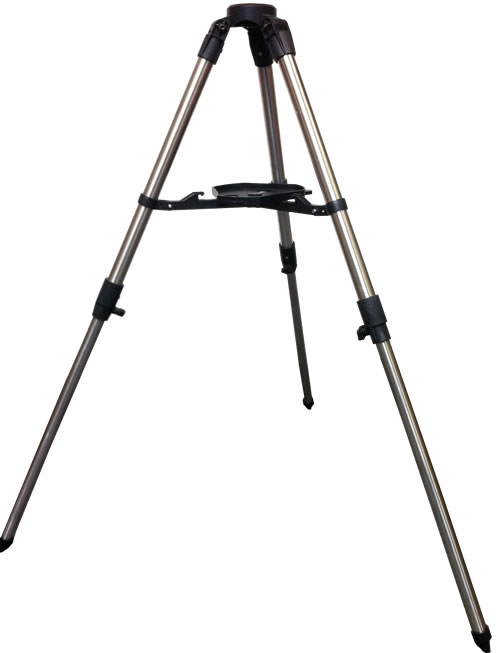

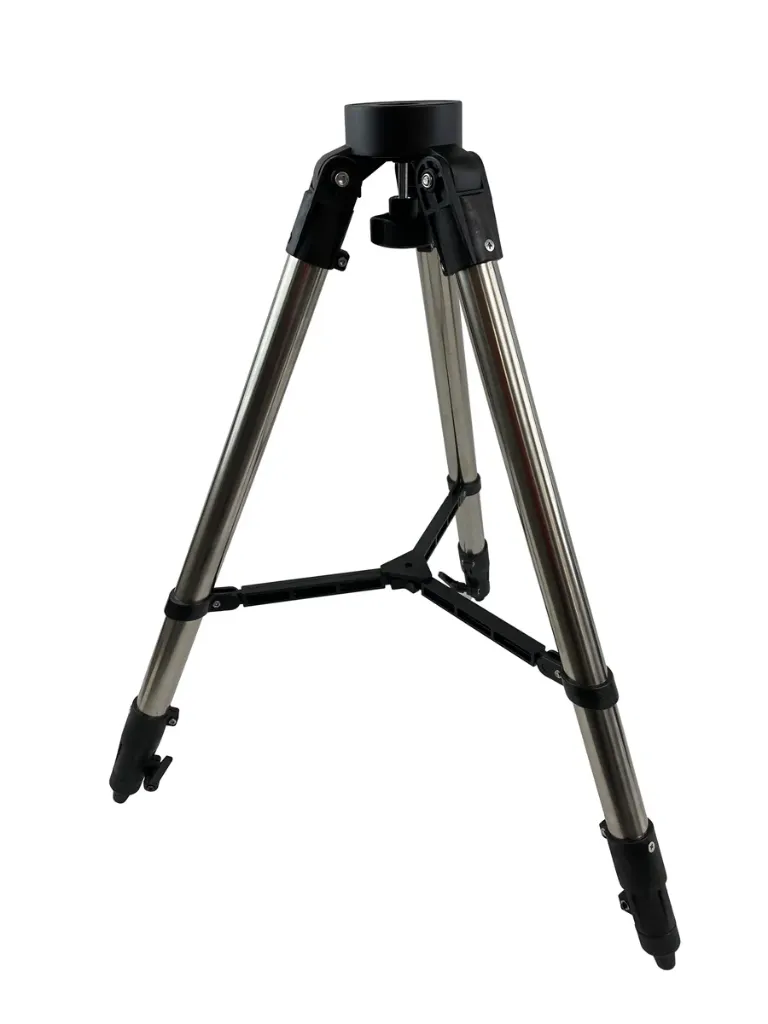

iOptron 31.75 mm (1.25 in) Stainless Steel Tripod
The iOptron 3221 Tripod features sturdy 31.75 mm (1.25 in) stainless steel legs designed to deliver rigid stability while remaining compact and lightweight for field observations and astrophotography. Featuring a die-cast aluminum top plate with an 82.55 mm (3.25 in) diameter, this tripod provides a solid foundation for iOptron's line of portable mounts.
Supported Mounts
This tripod is compatible with the following mounts (please specify your mount model when ordering):
- SkyHunter GOTO mount (all versions)
- SkyGuider Pro tracking mount
- iPano AllView camera mount
- SkyTracker / SkyTracker Pro camera mount
- SmartEQ / SmartEQ Pro mount
- HEM15, HAE16C, and HAE18C mounts
- SmartStar / Cube mount with an M8 mounting hole
- SmartStar / Cube mount with a 3/8"-16 mounting hole
Tip for Cube/SmartStar Owners: Test the threads using your mount's dovetail lock screw. If it fits, your mounting hole thread is M8; otherwise, it requires a standard 3/8"-16 thread.
Technical Specifications
| Tripod Top Material | Die-cast aluminum |
|---|---|
| Top Diameter | 82.55 mm (3.25 in) |
| Mounting Thread | 3/8"-16 (M8 available upon request) |
| Leg Specification | 2-section, 31.75 mm (1.25 in) stainless steel |
| Tripod Height Range | 62.2 cm to 108 cm (24.5 in to 42.5 in) |
| Maximum Leg Spread | 101.6 cm (40 in) diameter |
| Folded Size | 68.6 x 15.2 cm (27 x 6 in) |
| Net Weight | 2.7 kg (6 lbs) |
| Gross Shipping Weight | 4 kg (8.8 lbs) |
| Shipping Dimensions | 74.3 x 15.9 x 15.9 cm (29.25 x 6.25 x 6.25 in) |
| Brand | iOptron |
