Complete Package / Two-Box Bundle Notice (SKU: IOP-7603AG)
This product is sold as a complete set shipped in two separate boxes:
Box 1: GEM45 Mount Head in Hard Case (Product Code: 7620A-HC) |
Box 2: LiteRoc Tripod (Product Code: 7623).

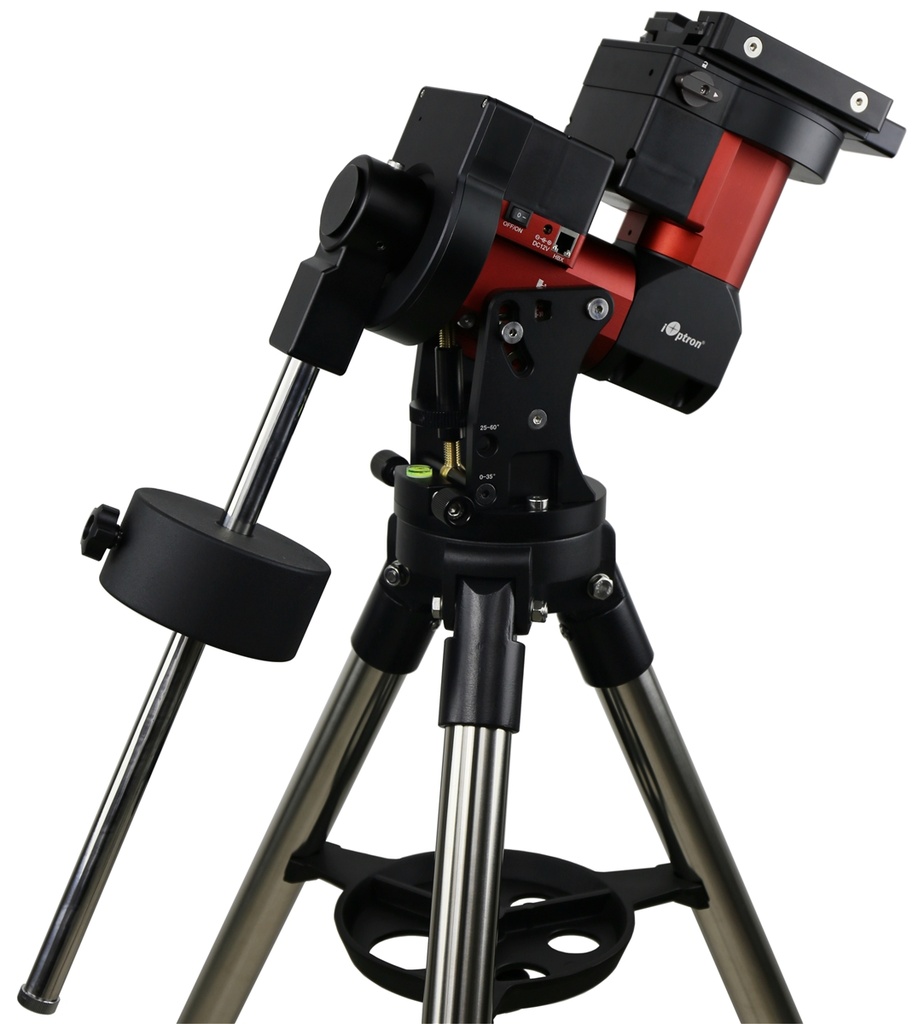

iOptron® GEM45 German Equatorial Mount with iPolar, LiteRoc Tripod & Hard Case
Innovative ideas applied to a time-tested design: the iOptron® GEM45 next-generation German equatorial mount. Featuring a sharp-looking CNC-machined body anodized in red and black, the GEM45 is a top-quality mount in both form and function.
Utilizing experience gained during the development of the CEM series, iOptron removed unnecessary bulk, giving the GEM45 an incredible 2.58 payload-to-mount weight ratio. This compact 7.9 kg (17.5 lbs) mount head can precisely GOTO objects and track with up to 20.4 kg (45 lbs) of onboard gear. With its integrated electronic polar scope (iPolar™), polar alignment is effortless even when the Pole Star is partially obscured.
This complete bundle includes the upgraded LiteRoc™ 44.5 mm (1.75 in) stainless steel tripod delivering rock-solid stability in a lighter package, alongside a custom die-cut aluminum hard case for the mount head.
Product Bundle Components
- CNC machined GEM45 mount head (#7620A)
- Built-in iPolar™ electronic polar finder scope
- Go2Nova® 8407+ Hand Controller with built-in heater
- Heavy-duty aluminum hard case included
- 32-channel GPS module, AC adapter & cables
- Die-cast aluminum top with 120 mm (4.73 in) head
- 44.5 mm (1.75 in) stainless steel upper leg section
- 38.1 mm (1.5 in) lower leg section with extension lock levers
- Solid metal accessory tray / spreader
- Lightweight 6.8 kg (15 lbs) design with 2"-like stability
Key Features
- 20.4 kg (45 lbs) payload capacity; mount head weighs only 7.9 kg (17.5 lbs).
- Easy-to-use quick-lock gear clutches usable even with gloves.
- Integrated iPolar™ electronic polar scope for alignment precision.
- Low periodic error (< ±7.5 arcsec) with Permanent PEC (PPEC).
- Internal advanced cable management system prevents cord snags.
- 152.4 mm (6 in) dual Losmandy-D & Vixen dovetail saddle.
- Go2Nova® controller with 212,000+ object database.
- 32-channel GPS module and ST-4 autoguiding port.
Technical Specifications (Combined Package)
| 1. Mount Head Specifications (Box 1 / P/N: 7620A-HC) | |
|---|---|
| Mount Type | German Equatorial Mount (GEM) |
| Max Payload Capacity | 20.4 kg (45 lbs) (excluding counterweight) |
| Mount Head Weight | 7.9 kg (17.5 lbs) |
| Payload to Mount Ratio | 2.58 |
| Structure Material & Finish | All metal, CNC machined, Red/Black anodized |
| Latitude Adjustment Range | 14º ~ 68º |
| Azimuth Adjustment Range | ± 6º |
| Tracking Accuracy (PE) | < ±7.5 arcsec with Permanent PEC (PPEC) |
| Worm Wheels (RA & DEC) | 110 mm (4.33 in) diameter, 216 teeth, brass worm, zero backlash |
| Shafts & Bearings | 45 mm (1.77 in) steel shafts with 68 mm (2.68 in) bearings |
| Counterweight Shaft | 28 x 280 mm (1.1 x 11 in) Stainless Steel, 1.2 kg (2.6 lbs) |
| Drive Motors & Resolution | Precision stepper motor (1.8º / 128X micro-step), 0.08 arcsec resolution |
| Hand Controller | Go2Nova® HC, 8 line 21 character LCD, 212,000+ objects |
| Polar Scope | Internal iPolar™ electronic polar scope |
| Dovetail Saddle | 152.4 mm (6 in) dual Losmandy-D & Vixen saddle |
| Power Requirements | DC 12V, 5A (5.5mm/2.5mm plug) | AC adapter 100V-240V included |
| Operating Temperature | -10ºC to 40ºC (14ºF to 104ºF) |
| 2. LiteRoc Tripod Specifications (Box 2 / P/N: 7623) | |
| Tripod Head Top | Die-cast aluminum, 120 mm (4.73 in) diameter |
| Leg Material & Size | 2-section Stainless Steel | Upper: 44.5 mm (1.75 in) | Lower: 38.1 mm (1.5 in) |
| Height Adjustment | 765 mm to 1168 mm (30 in to 47 in) |
| Maximum Leg Spread | ~1520 mm (~60 in) |
| Tripod Weight | 6.8 kg (15 lbs) |
| 3. Shipping Weights & Dimensions | |
| Box 1 Shipping (Mount Head) | 15 kg (33 lbs) | 48.3 x 43.2 x 25.4 cm (19 x 17 x 10 in) |
| Box 2 Shipping (Tripod) | 7.7 kg (17 lbs) | 86.4 x 22.9 x 22.9 cm (34 x 9 x 9 in) |
Detailed Shipping Contents
Box 1: Mount Head & Accessories (#7620A-HC)
- ▪ iOptron® GEM45 Mount Head (#7620A)
- ▪ Internal iPolar™ Electronic Polar Scope
- ▪ Go2Nova® Hand Controller
- ▪ Stainless Steel Counterweight Shaft
- ▪ GEM45 GPS Module (32-channel)
- ▪ Custom Aluminum Hard Case
- ▪ AC Power Adapter (100V-240V)
- ▪ 2x Coiled Control Cables & USB Cable
- ▪ Quick Start Guide
Box 2: Tripod (#7623)
- ▪ LiteRoc™ 44.5 mm (1.75 in) Stainless Steel Tripod
- ▪ Metal Accessory Tray / Spreader
- ▪ Center Alignment Post
Manuals, Firmware & Drivers
