StellarMate Pro Active GPS Antenna

StellarMate Pro Active GPS Antenna

SKU IKA-860
By default, SM Pro is shipped with a passive GPS antenna. Due to interference issues from USB 3.0 devices and other sources, the satellite signal may not be sufficient to obtain a GPS lock. An active antenna can be used to overcome this limitation.

SM PRO hardware board revision PRO-3 or later (Release October 2024) provides support for external active GPS antennas. The GPS antenna will not work on older PRO-1 and PRO-2 revision boards. You can find your board hardware revision in the device tab.

10.000 KD 10.000 KD
10.000 KD

Tags
Contact Us

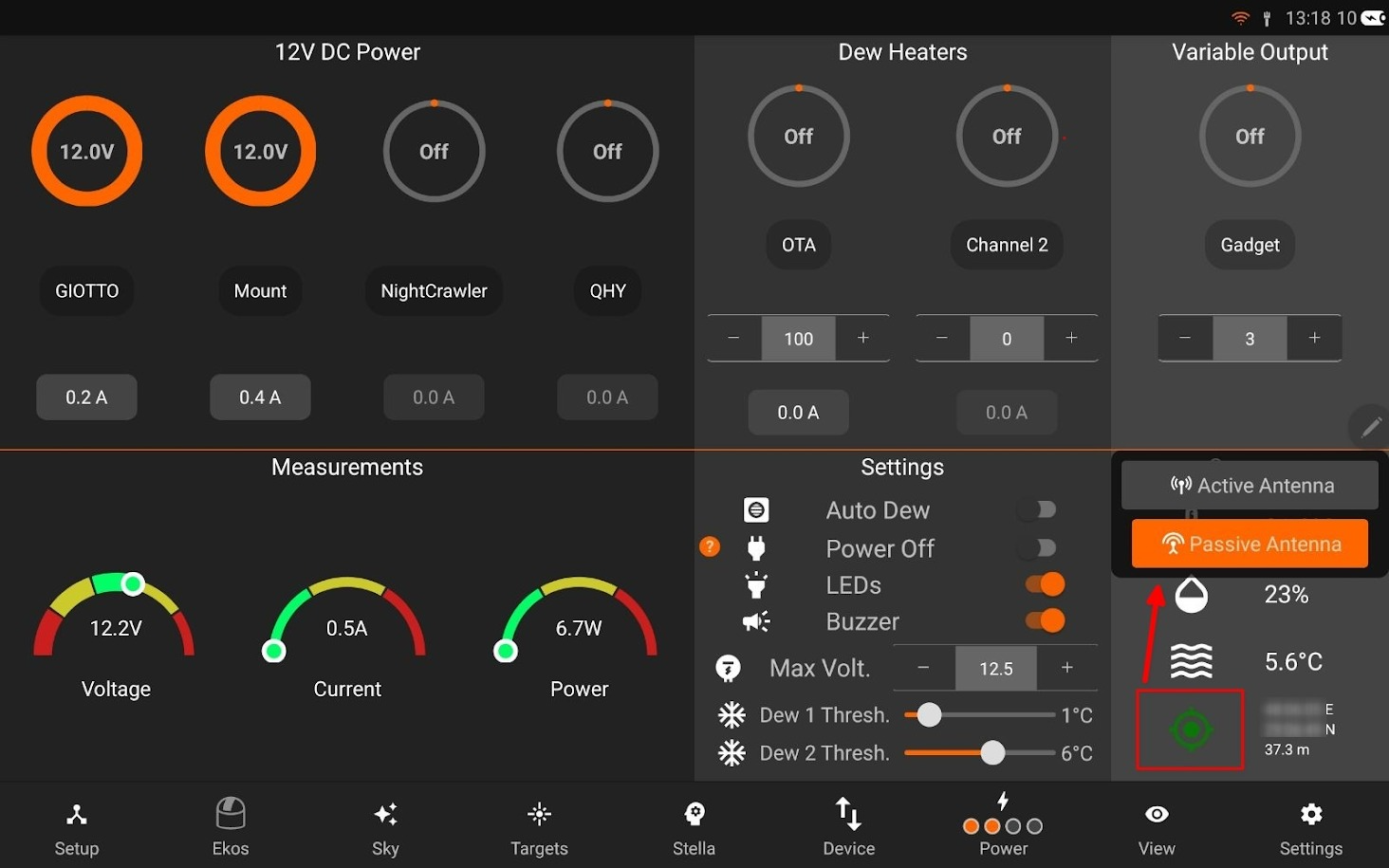

Place the antenna at least 50 cm away from SM Pro. In StellarMate App, tap the GPS status indicator to toggle between the Passive & GPS antennas.

GPS status is displayed in the StellarMate Pro App Power tab.
Specifications

Model Number:ZX-22
VSWR:Max 2.
Frequency:1575.42 MHz
Cable Length:3M/Customized
Cable type:RG174 Coax Cable
Impedance:50 Ohm
Size:50*40*20mm
Maximum input power (W):10w
Material:ABS
