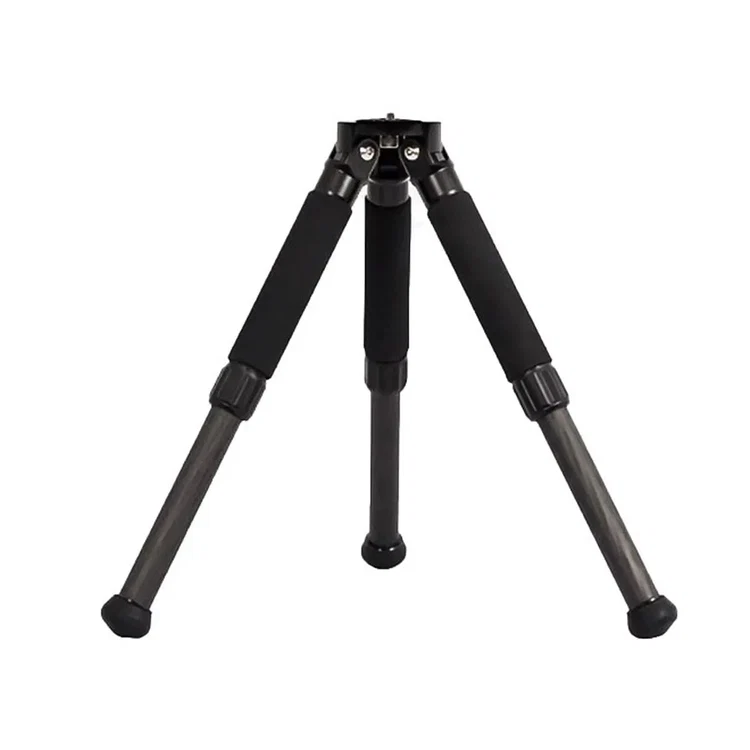

Ultra-Lightweight & Sturdy Carbon Fiber Tripod for Seestar
Enhance your astro-imaging experience with the official ZWO TC20 Carbon Fiber Tripod (SKU: SS TC20-R). Specially engineered as the perfect companion for Seestar S30, Seestar S30 Pro, and Seestar S50, or as a high-performance replacement for stock tripods, the TC20 offers an unbeatable balance of extreme strength, portability, and precise field leveling.
Key Features & Highlights
- High-Strength Carbon Fiber Build: Weighs a mere 1.3 lbs (0.59 kg) for effortless transport, yet supports heavy equipment loads up to 66 lbs (30 kg).
- Adjustable Height & Independent Leg Control: Height adjusts smoothly from 9.3" to 14.4" (235 mm to 365 mm). Independent leg angle locking enables quick leveling on rocky or uneven terrain.
- Compact & Portable Design: Folds down to just 10.4" (265 mm). Includes a protective drawstring carrying bag for convenient travel.
- Universal 3/8" Threaded Mount: Equipped with a standard 3/8" mounting screw, ensuring wide compatibility with smart telescopes, tripod heads, and cameras.
- Vibration-Damping Rubber Feet: Anti-slip rubber footpads absorb micro-vibrations and secure a firm grip on soil, grass, or concrete.

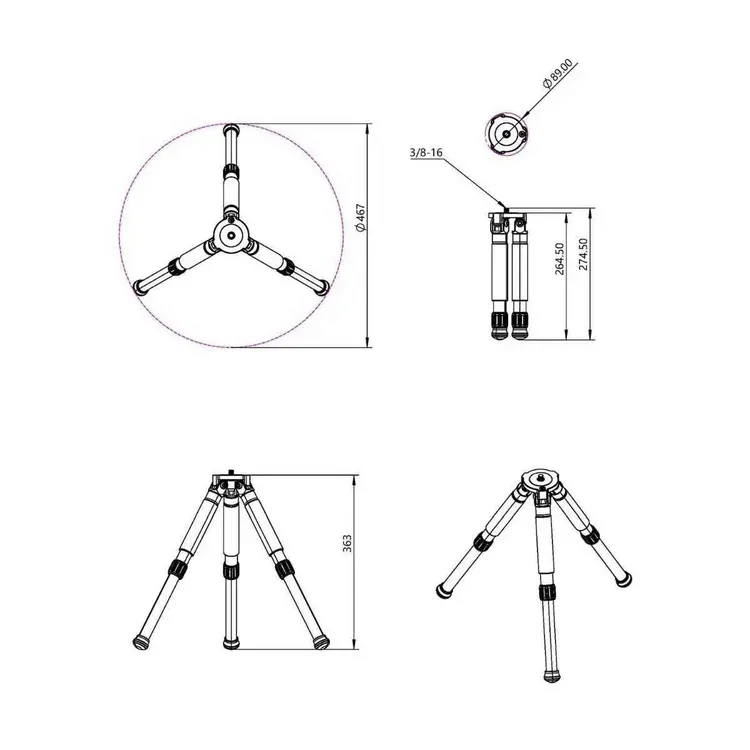

Technical Specifications
| Product Model | ZWO TC20 Carbon Fiber Tripod |
| Compatibility | Seestar S30, Seestar S30 Pro, Seestar S50 & 3/8" Threaded Mounts |
| Material | Carbon Fiber |
| Tripod Net Weight | 0.59 kg (1.3 lbs) |
| Maximum Payload | 30 kg (66 lbs) |
| Height Range | 235 mm – 365 mm (9.3" – 14.4") |
| Folded Length | 265 mm (10.4") |
| Mounting Thread | Standard 3/8" Threaded Screw |
| SKU / EAN | SS TC20-R / 6977641322065 |
Step-by-Step Installation Guide
Unfold the tripod legs and adjust each leg independently to your desired length. Place the tripod on a flat surface and align one leg roughly toward True North (in the Northern Hemisphere). Check the built-in bubble level and adjust leg extension until the bubble centers perfectly.
If pairing with the TH10 tripod head, screw the 1/4" to 3/8" adapter into the base of your Seestar unit and tighten securely using a coin or coin-wrench.
Attach the quick release plate firmly to the bottom of the Seestar and tighten all fixing screws.
Attach the TH10 head to the TC20 tripod. Loosen the azimuth adjustment knob, rotate the dovetail clamp so it points True North (aligned with the north-facing tripod leg), and re-tighten the knob.
Slide the Seestar unit into the dovetail clamp and tighten the locking knob securely before operation.
Video Tutorial

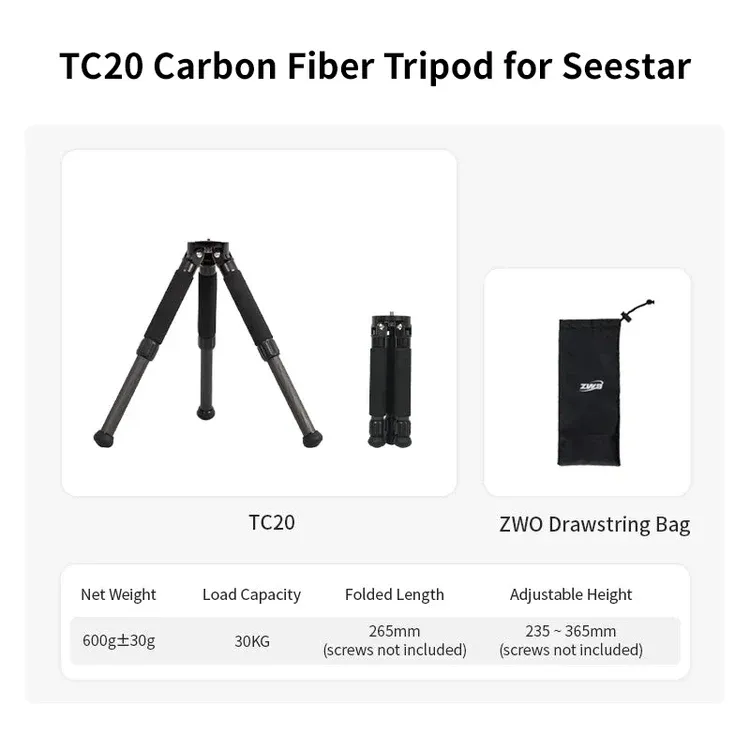

What's Included in the Box
- 1x ZWO TC20 Carbon Fiber Tripod
- 1x Protective Drawstring Carrying Bag
| Brand | ZWO |
